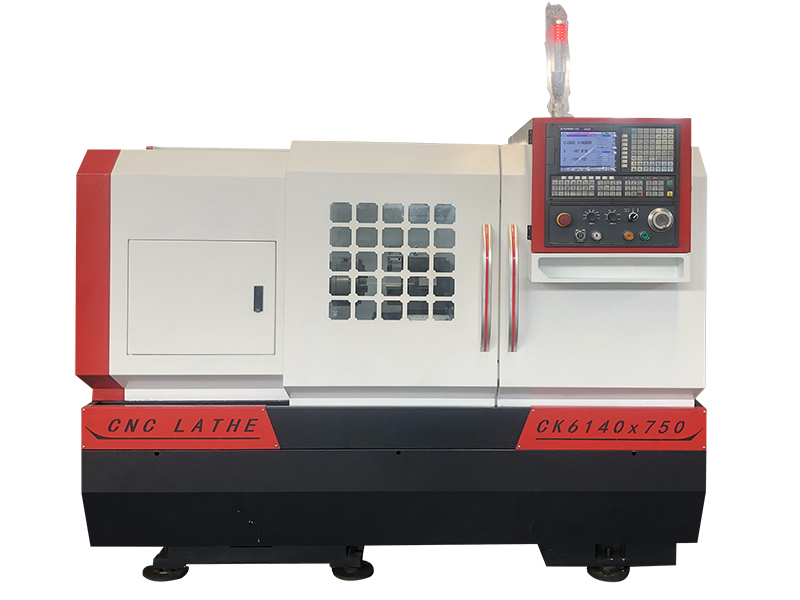

產品特點:
1. 數控車床斜床身設計，排屑方便、功能齊全、性能優良、具備高剛性、高效益、高精度等優點。
2. 鑄件均采用樹脂砂鑄造，經過時效處理、穩定性好、強度高、精度保持性好。
3. 數控系統功能完善，操控簡易。換刀快速平穩，精度高，全封閉保護，不滲油漏水，環保美觀。
Parameters (Item) | CK6140 |
CAPACITIES | |
Max. Swing Over Bed | mm |
Max. Swing Over Turret | mm |
Max. Turning Length | mm |
Bed Width | mm |
TRAVEL | |
X-Axis Travel | mm |
Z-Axis Travel | mm |
SPINDLE | |
Spindle Speed Range | rpm |
Spindle Nose Size | mm |
Spindle Internal Taper | |
Spindle Hole Diameter | mm |
TURRET | |
Number of Tool Stations | |
Tool Shank Size | mm |
Indexing Time | sec |
FEEDS | |
Rapid Traverse of X Axis | mm/min |
Rapid Traverse of Z Axis | mm/min |
Cutting Feed Rate X and Z Axes | mm/r |
TAILSTOCK | |
Taper of Tailstock Sleeve | |
Diameter of Tailstock Sleeve | mm |
Travel of Tailstock Sleeve | mm |
MOTOR | |
Main Motor Power | kW |
X & Z Axis Motors | Nm |
Dimensions (L × W × H) | mm |
Net Weight | kg |
Type of CNC Controller |
主要技術參數:
參數(Item): 型號(Model): | CK6140 | |
加工能力 CAPACITIES | 床身上*大回轉直徑Max.swing over bedmm | 400 |
刀架上*大回轉直徑Max.swing over arriagemm | 200 | |
*大車削長度Max truning length | 930 | |
床身寬度Bed width | 360 | |
行程 | X軸行程Xaxis travelmm | 300 |
Z軸行程Yaxis travelmm | 900 | |
主軸 | 主軸轉速范圍Spindle speed rpm | 40-1800無極變速 |
主軸端部尺寸Spinele nosemm | C6 | |
主軸內控錐度Spindle taper | MT6# | |
主軸通孔直徑Spindle hole | 52 | |
刀架 | 刀具數量Number of stations | 4(6) |
刀柄尺寸Tool shank sizemm | 25×25 | |
換刀時間Indexing timesec | 2.0 | |
進給 | X軸快速進給Rapid traverse of X axismm/min | 6000 |
Z軸快速進給Rapid traverse of Z axismm/min | 6000 | |
每轉切削進給量Cutting feed X and Z axismm/r | 0.005-100 | |
尾座 | 尾座套筒錐度Taper of tailstock sleeve | MT4# |
尾座套筒直徑Dia.of tailstock sleeve | 65 | |
尾座套筒行程Travel of tailstock sleeve | 140 | |
電機 | 主電機功率Main motor power kw | 5.5 |
X軸、Z軸電機X and Z axis motor Nm | 4/6 | |
長×寬×高L×W×H mm | 2100×1500×1500 | |
凈重Net weight kg | 1800/2000 | |
數控系統Type of CNC Controller | GSK928TD-L或自選 | |
